Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES

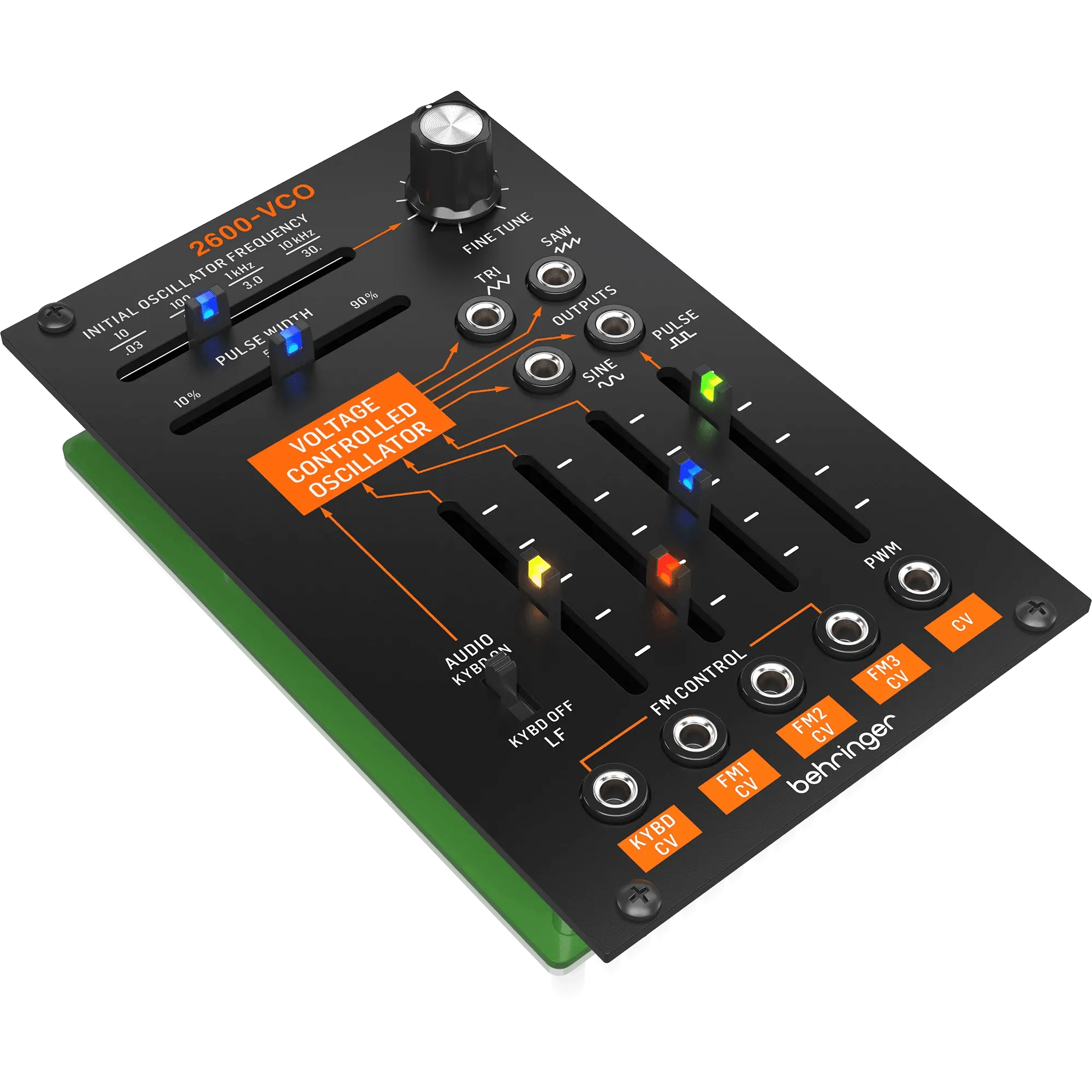

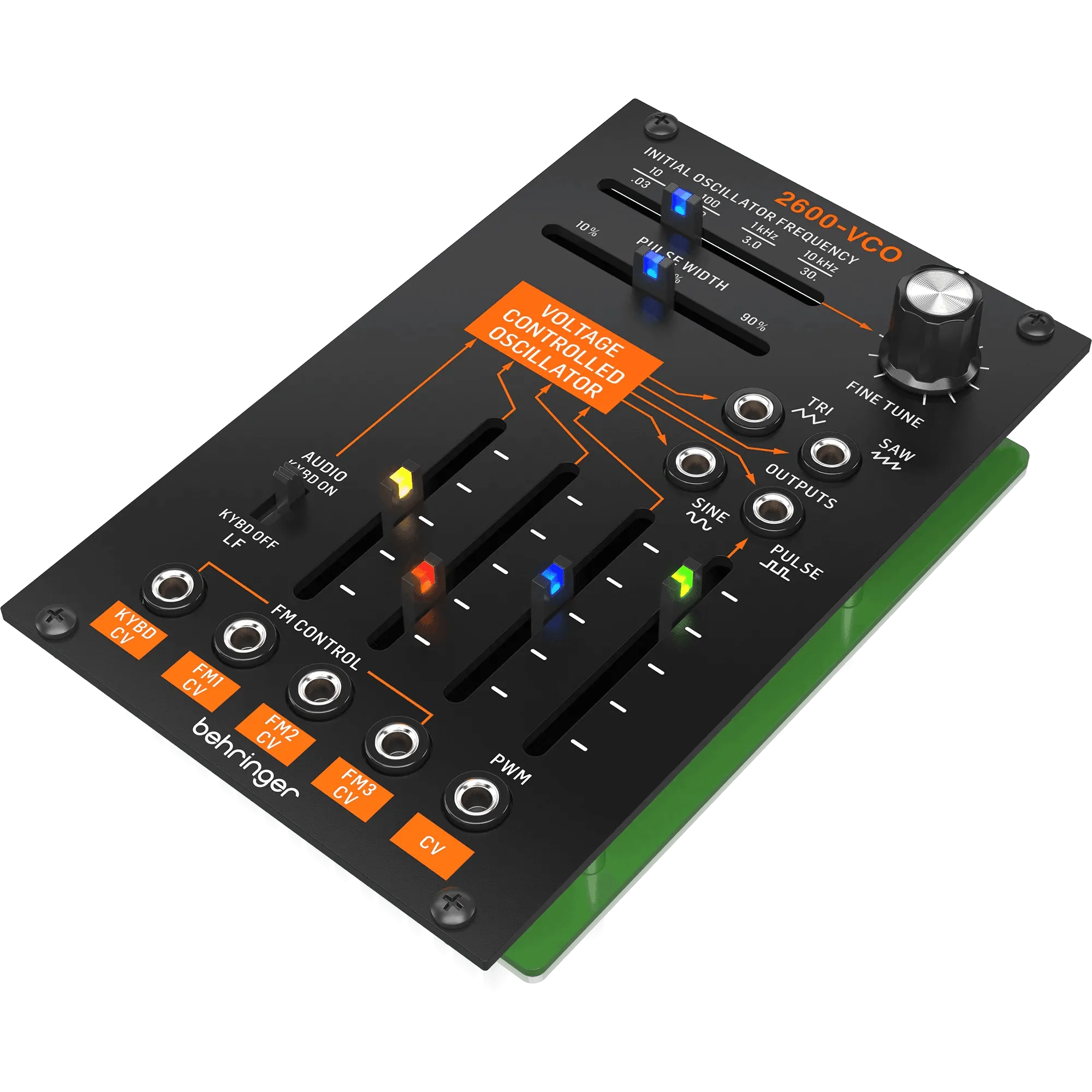

- Amazing sounding VCO module from the ’70s
- Authentic reproduction of original ARP* 2600 circuitry
- VCO features 4 simultaneous waveforms: sine, triangle, saw and pulse
- VCO offers wide frequency control from 10 Hz to 10 kHz or 0.03 Hz to 30 Hz in LF mode
DESCRIPTION
Nothing beats the classic 12AX7 vacuum tube when it comes to delivering soul-searching guitar tone; that’s why it’s a mainstay in musical instrument amplifier design. TUBE PILOT OVERDRIVE is highly maneuverable and powerful enough to satisfy any guitar ace with a burning need for tone. Equipped with a genuine, handpicked 12AX7, TUBE PILOT injects your sound with the organic, touch sensitive saturation of a vintage tube amp that dares you to push it over the edge.
SPECIFICATIONS
| Keyboard CV |
|
| Type | 1 x 3.5 mm TS jack, DC coupled |
| Impedance | 100 kΩ, unbalanced |
| CV range | 10 V, 1 V/oct. |
| FM1 / 2 / 3 CV |
|
| Type | 3 x 3.5 mm TS jacks, DC coupled |
| Impedance | 50 kΩ, unbalanced |
| CV range | 10 V, 1 V/octave |
| PWM CV |
|
| Type | 1 x 3.5 mm TS jack, DC coupled |
| Impedance | 75 kΩ, unbalanced |
| CV range | 10 V, typically 1 V/10% |
| TRI/SINE/SAW/PULSE |
|
| Type | 4 x 3.5 mm TS jacks, DC coupled |
| Impedance | 1 kΩ, unbalanced |
| TRI level | ±5 V |
| SINE level | ±5 V |
| SAW level | 0 V / 10 V |
| PULSE level | 0 V / 10 V |
| Controls |
|
| Initial oscillator frequency fader | Sets oscillator frequency (10 oct. range) |
| Fine tune knob | Oscillator fine tune adjustment (±0.4 oct.) |
| Audio (Kybd on) / LF (Kybd off) slide switch | Select audio band (10 Hz to 10 kHz) or LFO (0.03 Hz to 30 Hz) |
| FM 1 / 2 /3 faders | Attenuate FM inputs (-∞ to unity gain) |
| Pulse width fader | Pulse width adjustment (10% to 90%) |
| PWM fader | Pulse width modulation attenuator (-∞ to unity gain) |
| Physical |
|
| Dimensions (H x W x D) | 129 x 81 x 42 mm (5.08 x 3.19 x 1.65") |
| Rack units | 16 HP |
| Weight | 0.15 kg (0.33 lbs) |
